Aerial Work Platforms / MEWP and Fire Trucks
Full CAN Bus control system for aerial work platforms and fire trucks. Outrigger-based working envelope, real-time stability management, cage levelling and water monitor control in a single ECU.
System Highlights
- Outrigger-extension based working envelope
- Real-time stability management — centre of gravity and load
- Automatic cage levelling with ±10° warning
- 3D cage anticollision — geometric and ultrasonic sensors
- Water pump and water monitor management
- CANopen / J1939 dual CAN Bus architecture
- Load cell basket weighing with overload protection
- Data logger and preventive maintenance tracking
In-depth Analysis

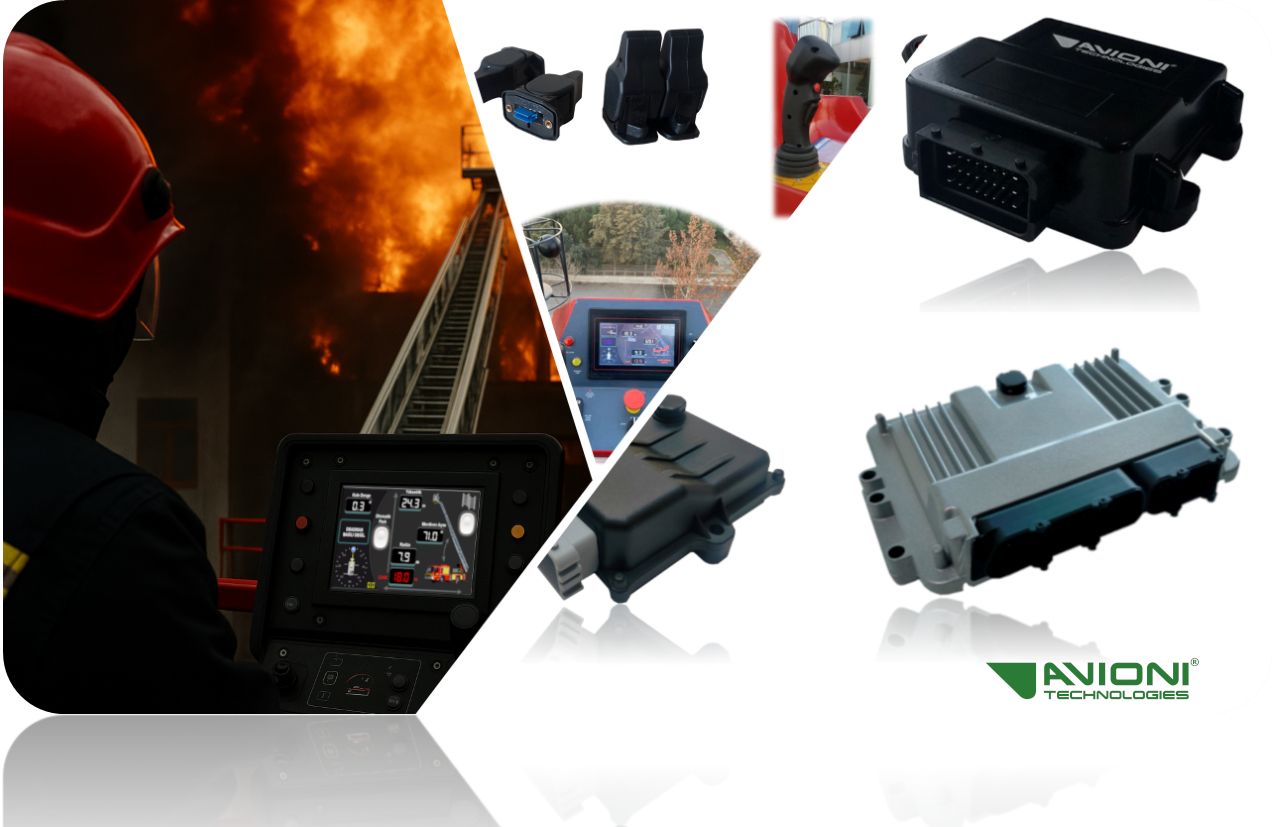

The Avioni AV.LMI.AWP control system provides full CAN Bus integration for aerial work platforms and firefighting vehicles. All hydraulic and electrical components — boom, cage, turret, outriggers, engine and water systems — are managed by a single ECU with independent firmware modules communicating over a dual CANopen / J1939 bus.
The working envelope adjusts dynamically based on outrigger extension. Speed is modulated by both load and wind conditions. The cage levels automatically and triggers warning or shutdown at ±10° deviation. A 3D anticollision system using geometric and ultrasonic sensors protects the cage throughout the full operating range. Water pump, water monitor and power-pack management are included as standard. Wireless GSM diagnostics are available as an option.
The working envelope adjusts dynamically based on outrigger extension. Speed is modulated by both load and wind conditions. The cage levels automatically and triggers warning or shutdown at ±10° deviation. A 3D anticollision system using geometric and ultrasonic sensors protects the cage throughout the full operating range. Water pump, water monitor and power-pack management are included as standard. Wireless GSM diagnostics are available as an option.
